MTE Relay Control Plane

MTE Relay 5.0.0-beta.1 introduces a control plane: a lightweight management instance with a web admin panel that lets you edit relay configuration at runtime and distributes those changes to every relay worker in your fleet. It works the same way in Kubernetes, OpenShift, Docker Swarm, Docker Compose, Amazon ECS, and bare processes.

Everything on this page applies equally to MTE Relay Server and MTE API Relay; the control plane is the same code in both products. One thing to know: overrides are global per control plane instance, so every worker polling the same panel receives the same override document. Run one control plane per fleet, and do not share a single panel between an MRS fleet and an MAR fleet.

This walkthrough deploys a control plane and a worker fleet with Docker Compose, wires the environment variables on both sides, and covers how to run the panel itself. It also explains the two behaviors you should understand before using it in production: the split between live fields and restart fields, and what happens when something goes wrong.

How it works

The control plane is the same container image as the relay, started with MODE=control. It serves the admin panel and a small config API. Relay workers poll it about every 3 seconds with a version tag; when nothing changed, the reply is a tiny header only response. The same poll doubles as a heartbeat (hostname, relay version, uptime, applied config version), which is what powers the Fleet page. There is no separate registration step: workers appear in the panel as soon as they start polling.

Configuration edits are sparse overrides. The panel stores only the fields you explicitly set, and on each worker a field resolves in this order:

override from the control plane  >  worker environment variable  >  built in default

Your deployment keeps its environment variable configuration as the baseline, and the control plane is a thin layer on top. Reverting a field in the panel returns each worker to its own baseline.

Quick start with Docker Compose

One shared token connects the two sides. The control plane refuses to start without CONTROL_PLANE_TOKEN, and every worker poll carries it as a bearer token.

services:
  control-plane:
    image: 321186633847.dkr.ecr.us-east-1.amazonaws.com/customer/on-prem/mte-relay-server:5.0.0-beta.1
    # A fresh named volume is owned by root, and the relay image runs as the
    # unprivileged nonroot user, so the control plane cannot write to /data
    # without this. See the note below for the alternative.
    user: "0:0"
    environment:
      MODE: control
      PORT: "8081"
      CONTROL_PLANE_TOKEN: change-me-shared-token
      ADMIN_PW: change-me-admin-password
      CONTROL_PLANE_DATA_DIR: /data
    volumes:
      - control-plane-data:/data
    ports:
      - "8081:8081"

  relay:
    image: 321186633847.dkr.ecr.us-east-1.amazonaws.com/customer/on-prem/mte-relay-server:5.0.0-beta.1
    environment:
      LICENSE_KEY: your-license-key
      COMPANY_NAME: your-company-name
      DOMAIN_MAP: '{"*": {"upstream": "https://your-upstream.example.com"}}'
      CONTROL_PLANE_URL: http://control-plane:8081
      CONTROL_PLANE_TOKEN: change-me-shared-token
    ports:
      - "8080:8080"
    depends_on:
      - control-plane

volumes:
  control-plane-data:

Two details worth calling out:

• Workers still need a baseline DOMAIN_MAP. A worker pointed at a fresh, unconfigured control plane exits without one. Give every worker its normal environment configuration; the control plane overrides it live.
• Mount a volume at CONTROL_PLANE_DATA_DIR, and make sure it is writable. The control plane persists its override document (with a monotonically increasing version) and the admin session signing secret there, so both survive restarts. The relay image runs as the unprivileged nonroot user, uid 65532, while Docker creates a fresh named volume owned by root. Without the user: "0:0" above, the control plane exits at startup with persist admin secret: write temp file: permission denied. See Backing up and restoring the override document for how to copy that state off the volume and put it back.

To keep the container unprivileged instead, create the volume and hand it to uid 65532 once, before the first docker compose up, then drop the user line. Compose prefixes volume names with the project name, which is the directory name unless you set it:

docker volume create myproject_control-plane-data
docker run --rm -v myproject_control-plane-data:/data busybox chown 65532:65532 /data

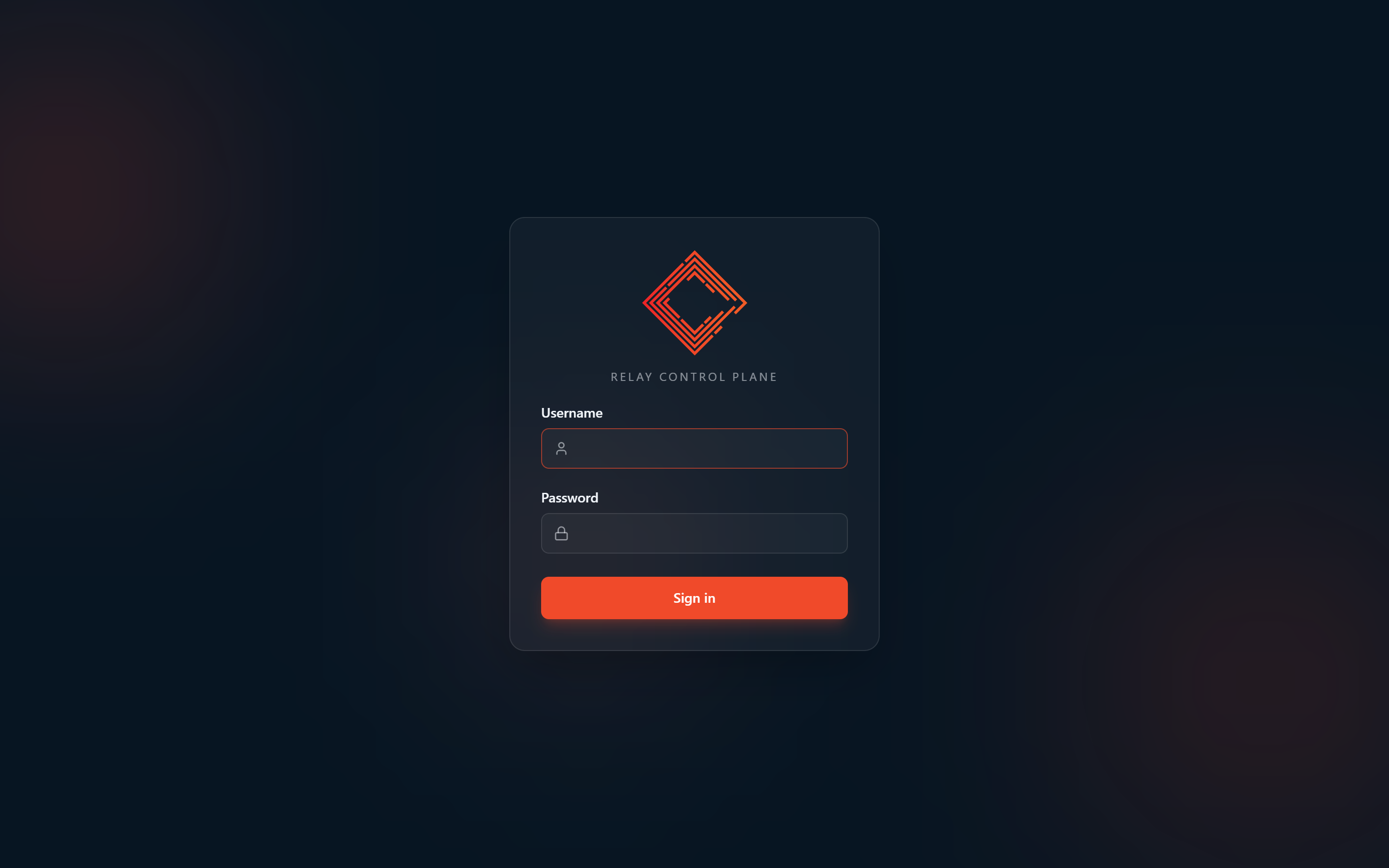

Start the stack, then open http://localhost:8081 and sign in with username admin and the password you set in ADMIN_PW.

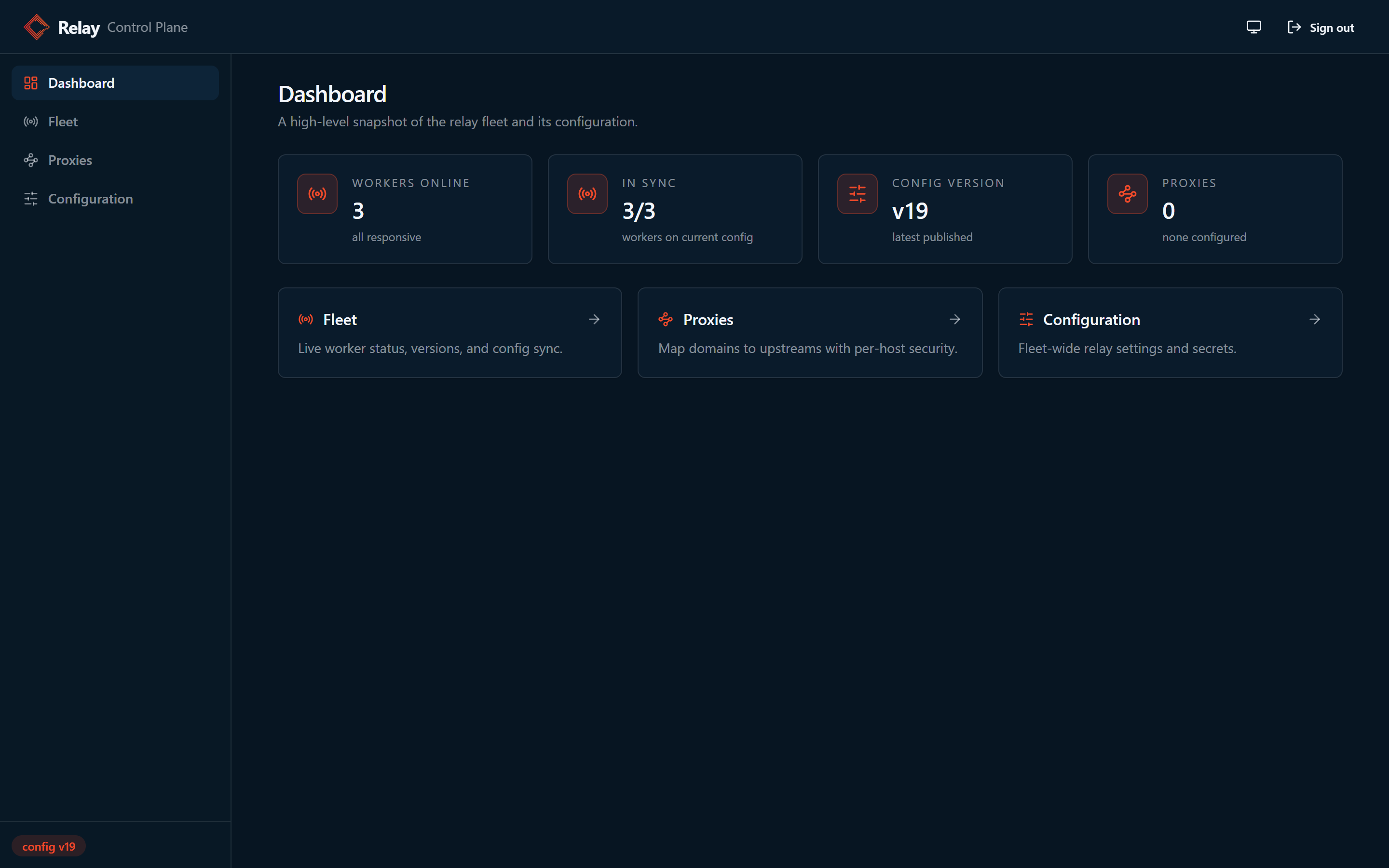

The dashboard shows the fleet at a glance: workers online, how many are in sync with the latest config version, and how many domains are mapped. Your worker appears within a few seconds of starting.

Environment variable reference

Control plane instance:

Variable	Required	Notes
MODE=control	Yes	Selects control plane mode. The default MODE=relay runs the data plane.
CONTROL_PLANE_TOKEN	Yes	Shared bearer token. The control plane refuses to start without it.
CONTROL_PLANE_DATA_DIR	Yes	Directory for the override document and session secret. Mount a volume or PVC here.
PORT	No	Listen port for the panel and API.
ADMIN_PW	Recommended	Admin panel password. The panel shows a persistent warning while the default password is in use.
ADMIN_JWT_SECRET	No	Seeds the session signing secret on first boot only; after that the persisted secret wins. It can be rotated from the panel.

Relay workers:

Variable	Required	Notes
CONTROL_PLANE_URL	Yes	Enables the poll agent on the worker.
CONTROL_PLANE_TOKEN	Yes	Must match the control plane token.
DOMAIN_MAP	Yes	Baseline routing config, still required at worker boot.
CONTROL_PLANE_POLL_SECONDS	No	Poll interval, 3 seconds by default with jitter.
RELAY_RUNTIME	No	Display only. Pins the runtime shown on the Fleet page (kubernetes, openshift, swarm, compose, ecs, or host) when the automatic detection is too coarse.

Running the control plane

The control plane is always its own service. One process runs one mode: with MODE=control the image serves the panel and the config API, and without it the same image serves traffic. That split is what keeps a panel fault, a panel restart, or a panel upgrade off the request path, and it is why applying a restart field never bounces the panel you are applying it from.

Three rules cover nearly every deployment.

Run exactly one instance

The override document is one JSON file owned by one process. The version counter that rejects stale saves lives in that process's memory, and the file is written atomically with a temp file and a rename. There is no cross process locking, so a second instance pointed at the same volume is not a second copy of the same panel. It is a second panel that happens to overwrite the same file.

Running two or more instances produces:

• Silent config loss. Each instance keeps its own version counter and overwrites the other's overrides.json. The last write wins, and the save that lost still reports success to the admin who made it.
• A partial fleet view. Worker polls land on whichever instance the load balancer picked, and the Fleet page is built from the polls that a single instance received. Each panel shows a slice of the fleet.
• A split fleet on Docker Swarm and Compose. A named volume is per node, so instances scheduled on different nodes read different override documents and the workers divide into populations running different configuration.

Nothing inside the control plane can tell that it has been scaled, so the result is divergence rather than an error. Pin the replica count to one.

Downtime on a single instance costs very little: workers keep serving their last applied configuration while it is gone, and catch up on the next poll once it returns. Scale the workers as far as you need. One control plane serving many workers is the shape the poll model was built for.

Give it its own hostname

The panel loads its assets and calls its API from the root of the origin it is served from, so it cannot be mounted under a path like https://ops.example.com/relay-panel/. Point a hostname, or a dedicated port, straight at the control plane root.

In production, leave the control plane port unpublished and reach it through a reverse proxy on an internal hostname. The quick start above publishes 8081 only so you can open it on localhost.

server {
    listen 443 ssl;
    server_name relay-panel.internal.example.com;

    ssl_certificate     /etc/ssl/certs/relay-panel.crt;
    ssl_certificate_key /etc/ssl/private/relay-panel.key;

    # Operator network only.
    allow 10.0.0.0/8;
    deny all;

    location / {
        proxy_pass http://control-plane:8081;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

The API carries secrets in both directions, so TLS in front of the panel is not optional. See Security notes for the rest of the requirements.

Keep development in the same shape

Use the same two service topology in development that you use in production, even when the whole stack is one relay worker on a laptop. The cost is a second service definition and a shared token. What it buys you is that the behavior worth learning early shows up locally: a restart field that sits pending until you roll the workers, a worker that rejects an override and reports why, and a save that reaches some workers a poll before the others. Run two or three relay replicas locally and the fleet view starts telling you things a single worker cannot.

Deployment templates

The worker manifests in the deployment guides run the data plane on its own. Adding the panel means adding a second service, wherever you deploy:

• Docker Compose: the quick start above is the template.
• Kubernetes: the on premise guides carry a control plane block next to the worker manifests, for MTE Relay Server and MTE API Relay.
• OpenShift: the same pages, with the SCC differences called out, for MTE Relay Server and MTE API Relay.
• Docker Swarm: the stack below.

Docker Swarm

Swarm needs two things the other runtimes do not.

Pin the control plane to one node. A named volume lives on the node that created it, so a task rescheduled elsewhere comes up with an empty store and your overrides appear to vanish. Pick a node and constrain the service to it.

Publish the panel in host mode. The default routing mesh publishes a port on every node in the cluster, which is the opposite of what you want for a page that edits license keys and client secrets. In host mode the port binds only on the pinned node, where your reverse proxy can reach it.

mte-relay-stack.yml

services:
  control-plane:
    image: 321186633847.dkr.ecr.us-east-1.amazonaws.com/customer/on-prem/mte-relay-server:5.0.0-beta.1
    # A fresh named volume is owned by root and the image runs as uid 65532.
    # To stay unprivileged instead, create the volume on the pinned node and
    # chown it to 65532:65532 once, then drop this line.
    user: "0:0"
    environment:
      MODE: control
      PORT: "8081"
      CONTROL_PLANE_TOKEN: __YOUR_SHARED_WORKER_TOKEN__ # Update this value!
      ADMIN_PW: __YOUR_ADMIN_PASSWORD__ # Update this value!
      CONTROL_PLANE_DATA_DIR: /data
    volumes:
      - control-plane-data:/data
    ports:
      # Host mode: binds on the pinned node only, not on every node.
      - target: 8081
        published: 8081
        mode: host
    networks:
      - relay
    deploy:
      replicas: 1 # never more than one
      placement:
        constraints:
          - node.hostname == __YOUR_CONTROL_PLANE_NODE__ # Update this value!
      update_config:
        order: stop-first # the old task releases the volume before the new one starts

  relay:
    image: 321186633847.dkr.ecr.us-east-1.amazonaws.com/customer/on-prem/mte-relay-server:5.0.0-beta.1
    environment:
      DOMAIN_MAP: '{ "relay.example.com": { "upstream": "__YOUR_UPSTREAM_URL__", "client_id_secret": "__YOUR_CLIENT_ID_SECRET__", "cors_origins": ["__YOUR_CORS_ORIGINS__"] } }' # Update this value!
      REDIS_URL: redis://redis:6379
      CONTROL_PLANE_URL: http://control-plane:8081
      CONTROL_PLANE_TOKEN: __YOUR_SHARED_WORKER_TOKEN__ # Must match the control plane
    ports:
      - "8080:8080"
    networks:
      - relay
    deploy:
      replicas: 3
      update_config:
        order: start-first

  redis:
    image: redis:7.2
    networks:
      - relay
    deploy:
      replicas: 1

networks:
  relay:
    driver: overlay

volumes:
  control-plane-data:

Deploy the stack, then apply restart fields later with a forced update of the worker service only:

docker stack deploy -c mte-relay-stack.yml mte-relay
docker service ls
docker service update --force mte-relay_relay

The relay reads its configuration from environment variables, so a Docker Swarm secret, which arrives as a file, cannot supply CONTROL_PLANE_TOKEN or ADMIN_PW directly. Keep the stack file readable only by the operators who deploy it.

For MTE API Relay, swap the image for 321186633847.dkr.ecr.us-east-1.amazonaws.com/customer/on-prem/mte-api-relay:5.0.0-beta.1. Nothing else changes.

Live fields versus restart fields

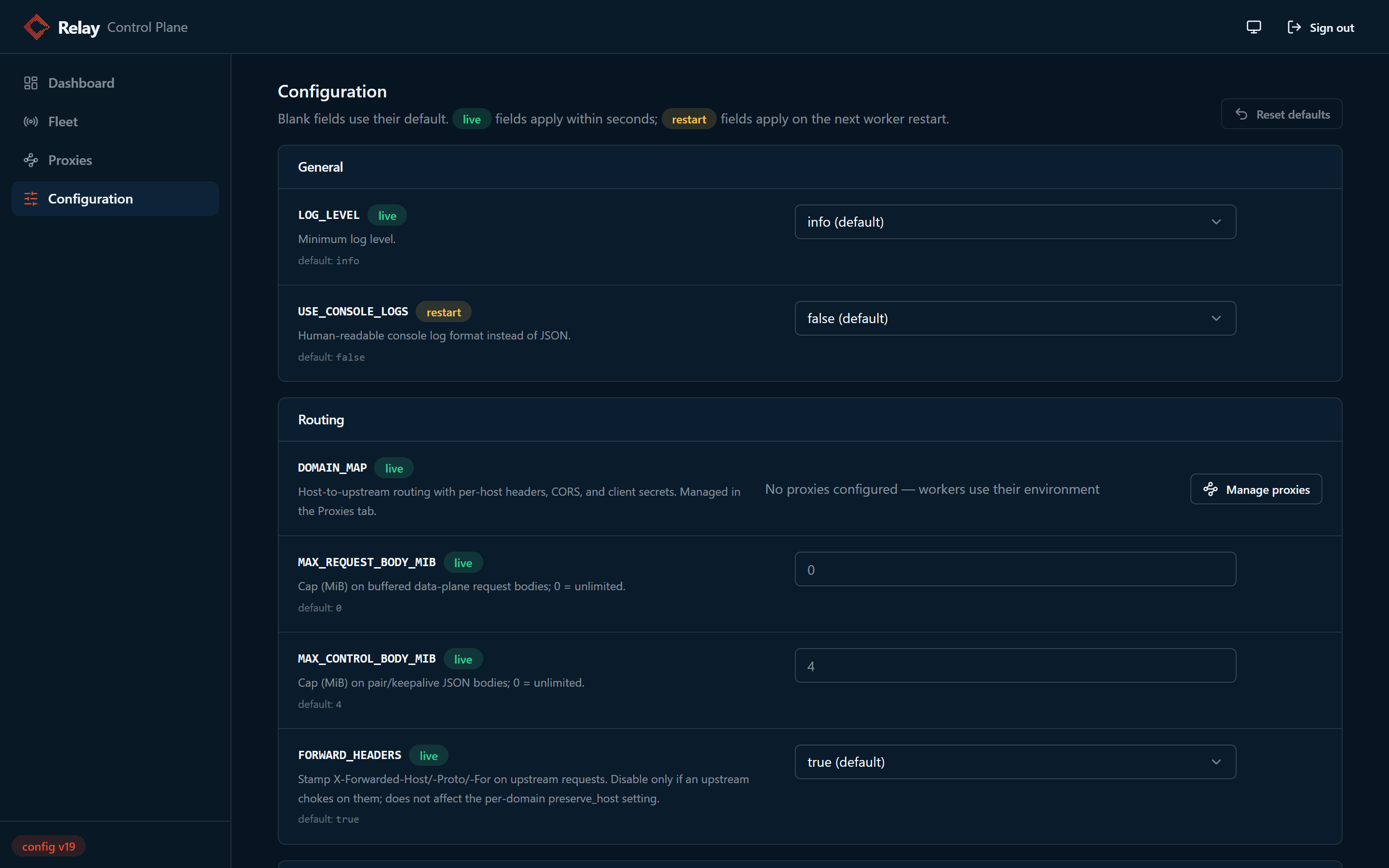

Open Configuration in the panel. Every field carries one of two badges:

• live fields are read on the request path and apply within one poll interval, with zero cost to request processing. The live fields are DOMAIN_MAP (managed on the Proxies page), LOG_LEVEL, MAX_REQUEST_BODY_MIB, MAX_CONTROL_BODY_MIB, and FORWARD_HEADERS.
• restart fields (pools, ports, Redis tuning, MTE settings, and the rest) are consumed when a worker constructs its runtime objects at boot. Saving one persists the override immediately, but each worker applies it the next time it starts. Workers fetch overrides before validation and pool construction, so a normal restart completes the change.

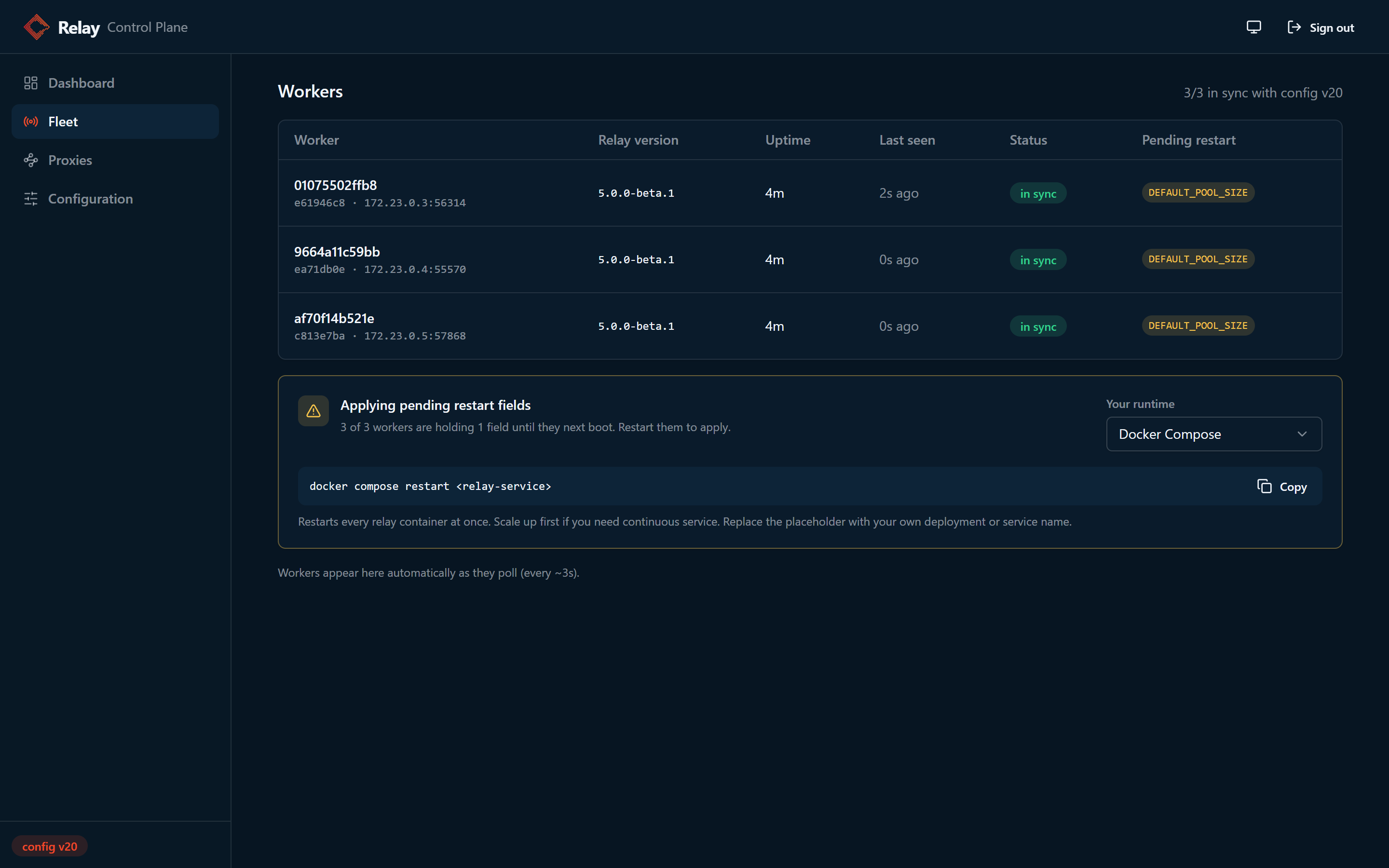

The Fleet page shows exactly which workers are still holding restart fields, and includes the restart command for your runtime with a copy button:

What is each worker actually running

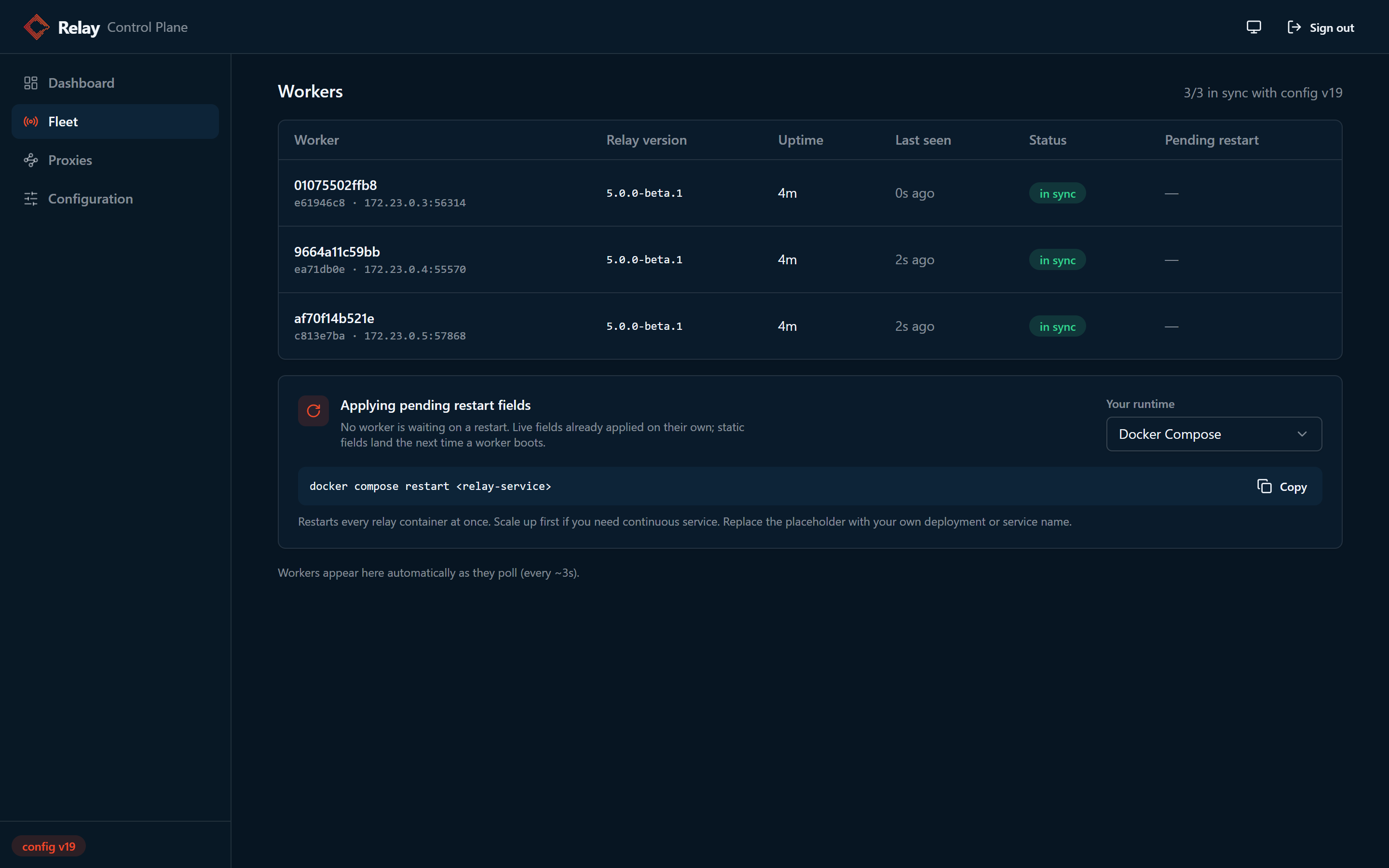

The Fleet page can answer a question the applied version number alone cannot: what configuration is a given worker actually running right now? Expand any worker row to see every configurable field's running value and where it came from: an override from the panel, the worker's own environment variable, or the built in default. This matters most when workers have different environment baselines under the same overrides, and when a saved override is still waiting on a restart; fields in that state show their current running value with a pending restart badge.

Workers report this themselves. When the control plane has no current report for a worker, it asks in the poll response, and the worker posts its running configuration. The steady state poll stays a tiny header only exchange, a control plane restart repopulates the reports within a few seconds, and a worker on an older relay version simply shows as not reported. Sensitive values never leave the worker: the license key, the Redis URL, and any client secrets inside DOMAIN_MAP are replaced on the worker by keyed fingerprints, so the panel can show that two workers run the same value without ever holding the value itself.

The control plane never talks to your orchestrator and holds no cluster credentials, so it cannot restart workers for you. The restart itself is the one runtime specific step:

Runtime	Command
Kubernetes	kubectl rollout restart deployment/<relay-deployment>
OpenShift	oc rollout restart deployment/<relay-deployment>
Docker Swarm	docker service update --force <relay-service>
Docker Compose	docker compose restart <relay-service>
Amazon ECS	aws ecs update-service --cluster <cluster> --service <relay-service> --force-new-deployment
systemd or bare process	systemctl restart mte-relay

Fail safe behavior

The control plane is deliberately outside the data path, and workers are built to keep serving traffic no matter what happens to it:

• Control plane down. Workers start on their environment baseline and keep serving their last known good configuration. Polls never touch request processing. When the control plane comes back, workers catch up on the next poll.

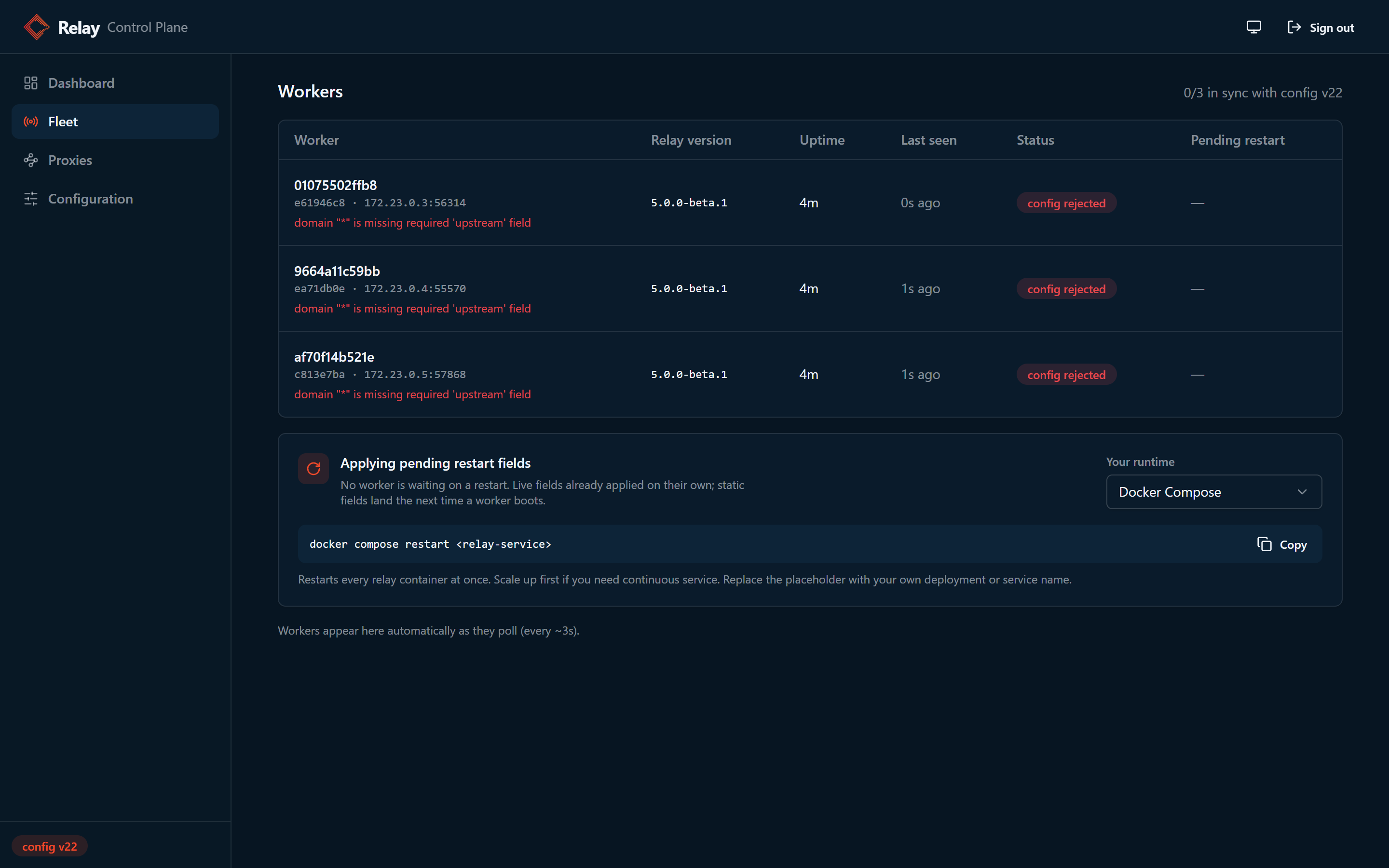

• Invalid override. If a worker receives an override set that fails its validation (for example a DOMAIN_MAP entry with no upstream), it rejects the whole set, keeps its current configuration, and reports the error in its heartbeat. The Fleet page shows the rejection per worker, and workers retry every poll until you fix the document:

• Mixed version fleets. During a rolling upgrade a worker may be older than the control plane and receive override keys its build does not know. It applies the keys it recognizes, skips the unknown ones, and reports them in its heartbeat; the Fleet page marks the worker as partial and lists exactly which keys it is not applying. Unknown keys degrade gracefully, while invalid values for known keys still reject the whole set as above.

To recover from a rejected edit, correct the field in the panel and save. Workers pick up the fixed document on their next poll and the fleet returns to in sync, with no restarts and no dropped traffic.

Backing up and restoring the override document

The control plane keeps its entire state in two small files inside CONTROL_PLANE_DATA_DIR:

• overrides.json is the override document, with the current version number and every field you have set in the panel. This is the file that matters.
• admin_jwt_secret is the session signing secret. Include it in backups so admin sessions survive a rebuild. If it is lost, the control plane generates a new one and every admin simply signs in again.

The panel has no export button, no import, and no rollback, and the version counter only moves forward. If an admin saves a bad DOMAIN_MAP, the only way back is retyping the old values, and if the volume is lost the override state is gone. A backup you take yourself is the safety net, so take one before any risky DOMAIN_MAP edit and before upgrades.

The control plane writes overrides.json atomically, so a copy taken at any moment is a valid document. You never need to stop the control plane just to take a backup.

Export with the API

This works on every runtime and needs nothing but network access to the panel. Sign in for a token, then read the document:

TOKEN=$(curl -s -X POST http://localhost:8081/api/login \
  -H 'Content-Type: application/json' \
  -d '{"username": "admin", "password": "<ADMIN_PW>"}' | jq -r .token)

curl -s -H "Authorization: Bearer $TOKEN" \
  http://localhost:8081/api/config > overrides-backup.json

On Kubernetes, run kubectl -n <namespace> port-forward svc/<control-plane-service> 8081:8081 first.

Copy the file off the volume

The relay image is distroless, so there is no shell or tar inside the container. docker cp and podman cp still work because the engine does the copying, but kubectl cp against the control plane pod does not, since it needs tar inside the container.

Docker Compose:

docker cp "$(docker compose ps -q control-plane)":/data/overrides.json ./overrides.json.bak
docker cp "$(docker compose ps -q control-plane)":/data/admin_jwt_secret ./admin_jwt_secret.bak

Docker Swarm. Named volumes live on the node running the task, so find that node first, then run docker cp on it:

docker service ps --format '{{.Node}}' --filter desired-state=running <stack>_control-plane
# then, on that node:
docker cp "$(docker ps -q -f name=<stack>_control-plane)":/data/overrides.json ./overrides.json.bak

Podman:

podman cp <control-plane-container>:/data/overrides.json ./overrides.json.bak
podman cp <control-plane-container>:/data/admin_jwt_secret ./admin_jwt_secret.bak

Kubernetes. Use the API export above, or run a helper pod that mounts the same PVC. A ReadWriteOnce disk attaches to one node at a time, so scale the control plane down first. Workers keep serving their last applied configuration the whole time:

kubectl -n <namespace> scale deploy/<control-plane-deployment> --replicas=0
kubectl -n <namespace> apply -f - <<'EOF'
apiVersion: v1
kind: Pod
metadata:
  name: pvc-access
spec:
  restartPolicy: Never
  containers:
    - name: pvc-access
      image: busybox
      command: ["sleep", "600"]
      volumeMounts:
        - { name: data, mountPath: /data }
  volumes:
    - name: data
      persistentVolumeClaim:
        claimName: <control-plane-pvc>
EOF
kubectl -n <namespace> wait --for=condition=Ready pod/pvc-access
kubectl -n <namespace> cp pvc-access:/data/overrides.json ./overrides.json.bak
kubectl -n <namespace> delete pod pvc-access
kubectl -n <namespace> scale deploy/<control-plane-deployment> --replicas=1

Restore

Both restore paths end the same way: workers see the version change on their next poll and converge within a few seconds. Fields with the restart badge still need the usual worker restart afterward.

Restore with the API, with no volume access and no control plane restart. The If-Match: * header deliberately replaces whatever is stored now, and the write is audited like any other save:

curl -s -X PUT http://localhost:8081/api/config \
  -H "Authorization: Bearer $TOKEN" \
  -H 'If-Match: *' \
  -H 'Content-Type: application/json' \
  -d "{\"overrides\": $(jq .overrides overrides-backup.json)}"

Restore by file: stop the control plane, place your saved overrides.json back in CONTROL_PLANE_DATA_DIR, and start it again; the document is read once at startup. With Compose:

docker compose stop control-plane
docker cp ./overrides.json.bak "$(docker compose ps -aq control-plane)":/data/overrides.json
docker compose start control-plane

On Kubernetes, reuse the scale down, helper pod, scale up sequence above with kubectl cp pushing the file in instead of pulling it out. On Podman, podman cp into the stopped container, then start it.

A restored file may carry an older version number than workers have already applied. That is fine: workers compare versions for equality, not order, so any mismatch delivers the restored document on the next poll.

Kubernetes notes

The wiring is identical in Kubernetes: run one control plane replica with a PVC mounted at CONTROL_PLANE_DATA_DIR, expose it as a Service, and set CONTROL_PLANE_URL and CONTROL_PLANE_TOKEN on the relay Deployment, with the shared token in a Secret. The control plane serves an unauthenticated GET /healthz for liveness and readiness probes; it reveals nothing but liveness. The data plane equivalent is GET /api/mte-echo. Restart fields are then a normal kubectl rollout restart deployment/<relay-deployment>.

Give the control plane Deployment replicas: 1 and strategy: type: Recreate. The default rolling update starts the new pod before the old one terminates, which puts two processes on the same override document for a few seconds, and a ReadWriteOnce PVC will block the new pod until the old one releases the volume anyway. Recreate avoids both. The short gap while the pod restarts is harmless, since workers keep serving their last applied configuration until it comes back.

Security notes

• Keep the control plane on an internal network and terminate TLS in front of it. The config API can carry secrets (license key, client id secrets, Redis URL), so do not expose it publicly.
• Admin sessions use a 15 minute sliding JWT: every authenticated request reissues a fresh token, so active admins stay signed in while an abandoned session expires. The signing secret can be rotated from the panel (Configuration, then Security), which signs out every admin immediately.
• Worker polls authenticate with CONTROL_PLANE_TOKEN as a bearer token, compared in constant time.
• Every accepted config save is audited: the control plane logs the admin username, the caller's address, the new document version, and the names of the override fields that were added, changed, or removed. Field values are never logged, since they can contain secrets. The log stream is the audit record, so retain control plane logs accordingly.
• For fleets of two or more replicas behind a load balancer, set an explicit client_id_secret per domain in DOMAIN_MAP, exactly as you would with environment variable configuration. On live DOMAIN_MAP updates, workers preserve existing generated secrets for hosts whose override does not specify one, so updates never invalidate active pairings.

Threat model

What an attacker gains at each level of access, and two design decisions your security team will want to see stated.

With an admin session: everything. An authenticated admin can read and write every override, including the sensitive fields LICENSE_KEY and REDIS_URL and any client_id_secret inside a DOMAIN_MAP override. The config API returns these values in cleartext to any admin session. This is deliberate and necessary: the panel edits those fields, and a config save replaces the whole document, so if reads masked values a routine save would overwrite the real secret with the mask. The panel shows sensitive fields as masked inputs with a reveal toggle, but that masking guards against shoulder surfing, not against an admin session; the session itself is the security boundary. Two properties contain the exposure. The panel can only reveal a secret an admin previously entered into it: overrides are sparse, and while workers self-report their running configuration for the fleet view, their sensitive values are replaced by keyed fingerprints before they leave the worker, so a license key that lives only in worker environment variables never reaches the control plane in recoverable form. And secret values never appear in logs; audit lines carry field names only. Non-sensitive baseline values (ports, pool sizes, log level, upstream URLs) do reach the panel in those reports; that visibility is the point of the feature.

With the worker token: read, not write. CONTROL_PLANE_TOKEN authenticates exactly one endpoint, the worker poll, and no poll can modify configuration. The poll response is the full override document, secrets included, so handle the worker token as carefully as the admin password: store it in a Kubernetes Secret or the equivalent, not in a committed manifest. A token holder can also forge heartbeats, which can show fake workers on the Fleet page or briefly evict a real worker's row until its next poll restores it, and can post a forged running configuration report for a worker whose ID it knows. All of it is display only; traffic and stored configuration are untouched.

With network access but no credentials: nothing. Unauthenticated callers reach the health endpoint, the static panel assets, and the login endpoint. Login compares credentials in constant time behind a shared exponential backoff that caps an online attacker near 288 guesses per day. Every other endpoint answers 401. The remaining exposure is the wire itself: the API moves secrets in both directions, which is why the TLS requirement below is not optional. One accepted tradeoff: anyone who can reach the panel can keep the single admin account locked by hammering failed logins. That is denial of service, not compromise, and it is another reason the panel belongs on an internal network.

Session token storage. The panel keeps the admin session token in browser localStorage rather than an HttpOnly cookie. A cookie would trade script injection exposure for cross site request forgery exposure and the machinery to counter it. The mitigations: a strict Content Security Policy (scripts limited to the panel's own bundle plus hashes of its two boot scripts, no framing, no object embeds), no third party scripts at all, and session bounds that limit a stolen token to a 15 minute idle window inside an 8 hour absolute lifetime.

Deployment requirements. The model above assumes all of the following: the control plane runs on an internal network and is never exposed publicly, TLS is terminated in front of it, ADMIN_PW is changed from the default, CONTROL_PLANE_TOKEN is stored as a secret, and control plane logs are retained, since the log stream is the audit record.
